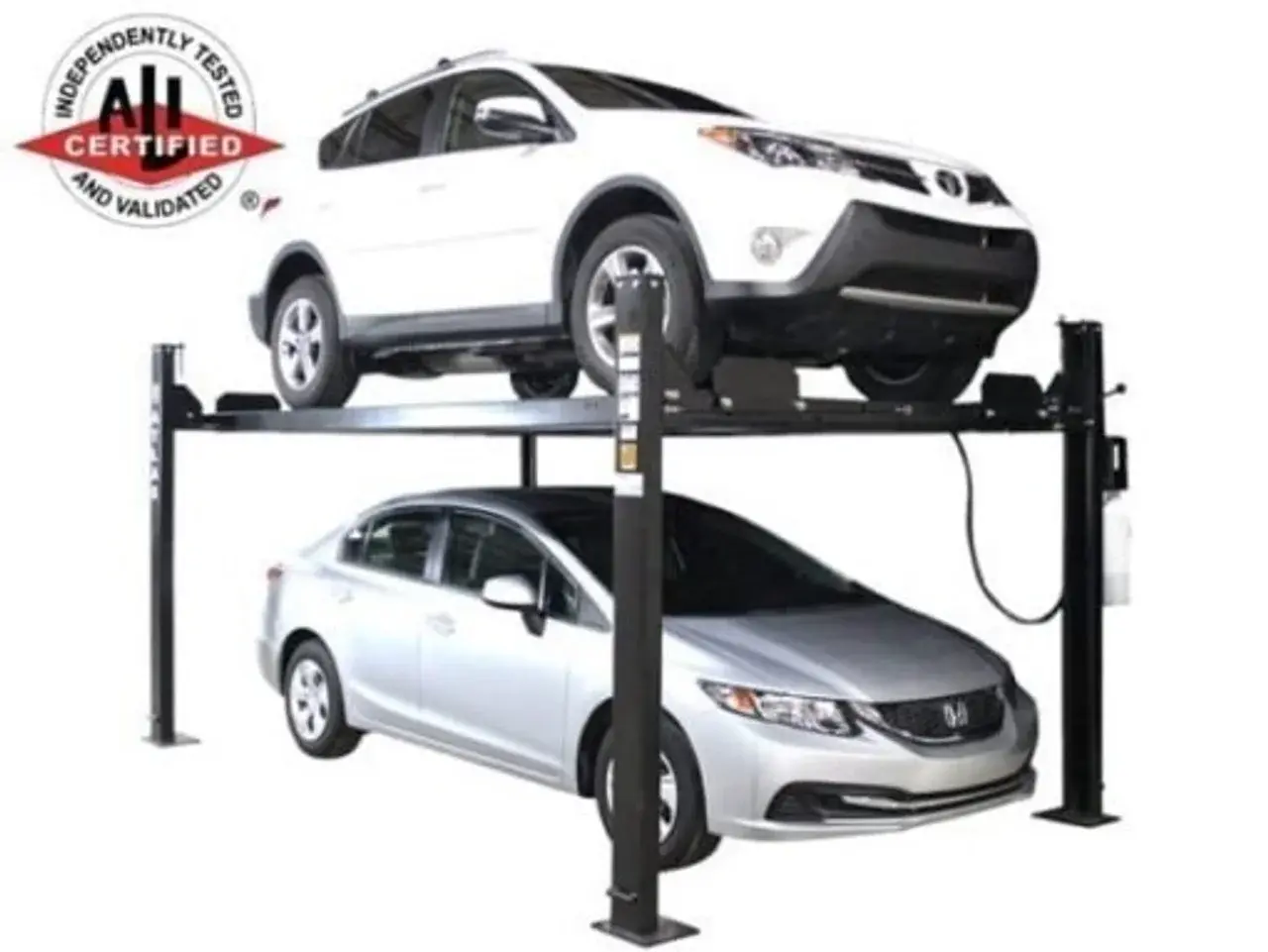

Atlas® Apex 8 – ALI Certified 4-Post Lift
A premium, ALI-certified 8,000 lb lift built for professionals and serious automotive enthusiasts alike.
🚗 Key Benefit: 8,000 lb capacity, ALI-certified safety, and a portable 4-post design that’s perfect for both vehicle storage and serious maintenance work.
🔍 Product Overview
The Atlas® Apex 8 redefines versatility and reliability in the world of automotive lifts. With a robust 8,000 lb capacity and ALI Certification, this lift ensures strict safety compliance for both home and professional garages.
Designed for sedans, SUVs, and light trucks, the Apex 8 features advanced hydraulics, uniform lifting across four posts, and fail-safe systems to protect both user and vehicle. Whether you're performing inspections, repairs, or long-term vehicle storage, this lift delivers unmatched stability and ease of use.
✅ ALI Certified for trusted safety and performance
✅ 8,000 lb Capacity supports most personal and commercial vehicles
✅ Free-standing, portable design with caster kit included
✅ Powder-coated finish for long-lasting durability
✅ Single-point lock release and double lock safety system
✅ Includes: Steel approach ramps, wheel chocks, caster kit, and more
⚙️ Features & Build Quality
Built with Q355 steel (stronger than typical Q235), the Apex 8 offers superior structural strength and minimal maintenance. Its hydraulic system includes overload protection and operates smoothly and quietly. The up-limit switch and automatic locking system provide multiple layers of protection.
✅ Hydraulic overload protection built into the power unit
✅ Fail-safe locking system with multiple lock points
✅ Low-noise operation and minimal maintenance requirements
✅ Smooth lifting and lowering via balanced hydraulic cylinders
📏 Dimensions & Technical Specs
Lifting Height (to top of runway): 72″
Clearance Under Runways: 67″
Column Height: 86 5/8″
Overall Width (w/ motor): 114″
Overall Length (w/ ramps): 207 5/6″
Runway Width: 18 2/3″
Runway Length: 169 1/2″
Clearance Between Columns: 94″
Maximum Wheelbase: 154″
Drive-Through Width: 80 1/4″
Motor/Electrical: 110V, 30 AMP breaker required
Shipping Weight: 2,000 lbs
📦 What’s Included
✔️ Steel approach ramps
✔️ Wheel stops
✔️ Two wheel chocks
✔️ Caster kit with polyurethane wheels
✔️ Lock ladder + double lock safety system
✔️ Optional anchor bolts (sold separately)
📈 Comparison: Apex 8 vs. Other Lifts
Compared to competitors like the BendPak HD-9 or Triumph NSS-8, the Atlas Apex 8 offers a well-balanced package of price, safety, and performance. With ALI certification, high-grade steel, and generous dimensions, it outperforms budget models while remaining more affordable than commercial-grade options.
🛡️ Warranty: 5-year structural / 2-year hydraulic (parts only)⚠️ Note: Some assembly required. Detailed installation manual included.
